Máquinas  > INSTRUMENTOS DE MEDIÇÃO
MEASURING INSTRUMENTS
Ref.: C/1-C/15-T-P
Devices for tool presetting
C/1 6.606,53€
C/1-C/15-T-P-sub C/15 6.995,95€
C/1-C/15-T-P-sub T 11.863,69€
C/1-C/15-T-P-sub P 12.565,55€
C/1-C/15-T-P-sub C1 6.606,53€
Tags:

Devices for tool presetting

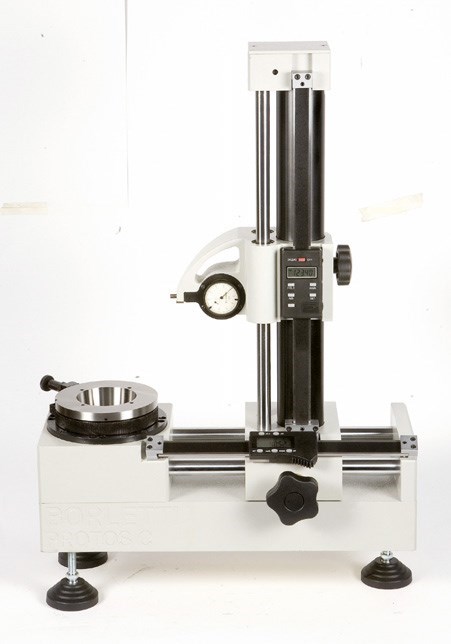

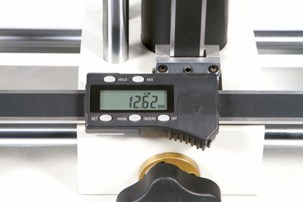

DIGITAL LINES FOR PROTOS C/1 – PROTOS C/15
Reading 0,01 mm
Accuracy 0,02 mm
ON/OFF
Zero setting at any point on the line
PRESET function: measurement setting
HOLD function: measurement hold
DATA function: data transmission
Data output OPTO RS232C



ART. C/1 C/15 T P
€ 2.918,00 3.090,00 5.240,00 5.550,00
Measuring range Axis X Ø 300 mm 300 mm 300 mm 300 mm
Measuring range Axis Z 285 mm 285 mm 430 mm 430 mm
Tool detection system (probe) Indicator • •
Tool detection system (probe) Shifter     •
Tool detection system (probe) Projector       •
Reading system Probe resolution 0,01 mm 0,01 mm 0,001 mm optical
20X
Reading system Axis X - / Axis Z Digital lines
0,01 mm		 Digital lines
0,01 mm		 Optical lines
0,005 mm		 Optical lines
0,005 mm
Spindle taper Rotating 40 •
Spindle taper Rotating 50   • • •
Spindle rotation   • • •
Vacuum pump for spindle centring     • •
AVIONAL aluminum structure • •
Stabilized cast iron base     • •
Shifting of the X axis on ground guides • •
Shifting of the X axis with trapezoidal screw     • •
Manual movement on the Z axis with counterweight • • • •
Overall dimensions 420x150x610 mm 420x150x610 mm 610x390x800 mm 610x580x800 mm

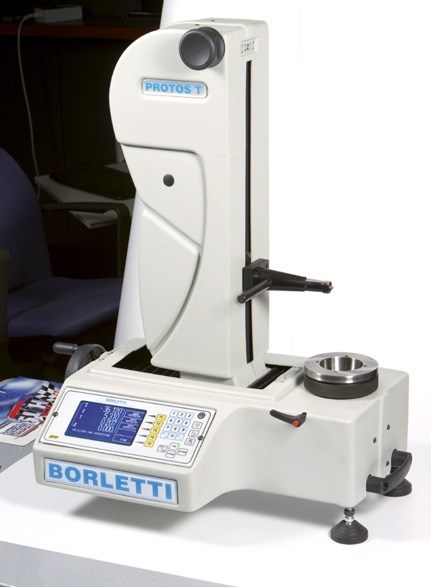

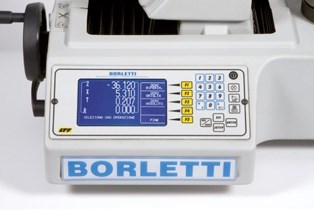

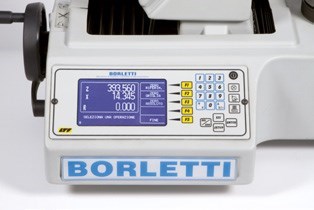

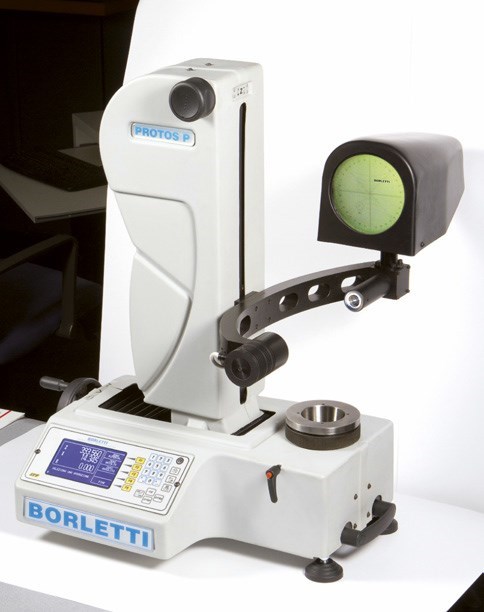

FUNCTIONS PROTOS T PROTOS P
Power On - Off • •
Contrast adjustment • •
Zero reference • •
Zero grid • •
Zero absolute • •
Zero single preset • •
Radius/Diameter • •
Angle • •
Profile radius • •
Distance external • •
Distance internal • •
Printing menu device No. • •
Printing menu machine tool • •
Printing menu all devices • •
Single preset • •
Multiple preset • •
Absolute Incremental • •
Magnifications - 20X
Screen diameter - 135 mm
